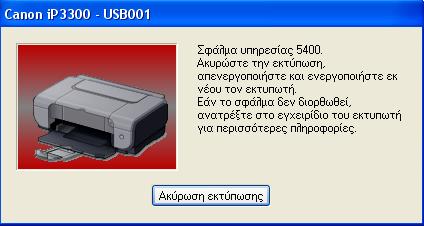

ip3300 + error 5400 = ?

[...---...]

Γεια χαρά σε όλους!

Υπάρχει ο συγκεκριμένος εκτυπωτής ο οποίος παρουσιάζει σφάλμα 5400, έχω δοκιμάσει αρκετά διαφορετικά reset αλλά δεν έπιασε κανένα.

Γνωρίζει κανείς καμιά πιθανή λύση π.χ. ένα reset που κάνει δουλειά ή κάτι που δοκίμασε ο ίδιος και έπιασε πριν τον κάνω κουτί για περιστέρια..

Και όπως δείχνει..



Όποιος μπορεί.. ας τον ακούσουμε..

[...---...]

Κανείς.. ?

[manet35]

Τσέκαρε αυτά :





Canon PIXMA IP3000 service stuff: (may not work with yours?)



Self Test

This printer has operations that can be performed independent of the computer. To perform one of these operations, hold down the resume button.

Operations Number of Flashes Remarks

Cleaning 1 time ...

Nozzle check pattern 2 times Load one sheet of A4 or larger paper.

Roller cleaning 3 times Do not load paper or load A4 paper. <----------------------this is what yours is doing?





Service Mode

This printer has a service mode for service-related settings and for performing test prints. The operator panel buttons are used to enter the desired service mode.

Service Mode Operations

1) With the printer powered off, hold down the resume button and press the power button.

2) While holding down the power button, release the resume button and press the resume button twice in succession. Now release the power button. The

indicator will blink in green and remain lit in green.

3) Select one of the following service mode functions by pressing the resume button the specified number of times.

Press Resume Indicator Functions

Zero times Green Power off the printer

1 time Orange Service test print

2 times Green EEPROM information print

3 times Orange EEPROM initialization

4 times Green Waste ink counter setting

5 times Orange Destination settings

6 times Green Print head deep cleaning

7 times Green CD-R test print

8 times Orange CD-R print position correction (horizontal)

9 times Green CD-R print position correction (vertical)

4) Execute the function you have selected (except for model setting) by pressing the power button. The printer will switch itself off after performing the function.





Error Codes

Errors will be displayed on the host computer monitor. The host computer should be set to ECP or Nibble mode. Use the BJ status monitor on Windows95/98.

CAN BE CORRECTED BY USER CAN NOT BE CORRECTED BY USER

Blinks Error Blinks Error

2 times No paper (ASF) [1000] 2 times Carriage [5100]

No CD-R tray [1001]

No paper in the cassette [1003]

3 times Paper jam [1300] 3 times Paper feed [6000]

Paper jam in the under guide [1304]

Paper jam in the rear guide [1303]

Front door closed [1250]

4 times No ink [1601 / 1611 / 1612 / 1613] 4 times Purge unit [5C00]

5 times The print head is not installed [1401] or 5 times ASF (cam) sensor [5700]

it is not properly installed (print head EEPROM data faulty) [1403 / 1405]

6 times Inner cover open [1841] 6 times Internal temperature [5400]

Inner cover open (while printing) [1846]

CD-R tray guide closed (during CD-R printing) [1850 / 1855]

CD-R tray guide open (while printing) [1851 / 1856]

7 times No CD-R or DVD-R [1002] 7 times Waste ink absorber full [5B00]

8 times Warning: The waste ink absorber becomes almost full [1700] 8 times Print head temperature rise [5200]

9 times The digital/video camera does not support camera direct printing [2001] 9 times EEPROM [6800]

10 times Automatic duplex printing cannot be performed (paper size not supported) [1310]

11 times Failed in automatic print head alignment [2500] 11 times Carriage lift mechanism [5110]

Access cover open [1200] 12 times AP position [6A00]

13 times Paper feed position [6B00]

14 times Paper feed cam sensor [6B10]

15 times USB Host VBUS overcurrent [9000]

16 times Valve sensor [6C00]

17 times Motor driver [6D00]

20 times Other hardware [6500]

Alt. Blinking ROM

Light in Orange RAM

[...---...]

Ο κωδικός σφάλματος παραπέμπει σε αντικατάσταση hardware του εκτυπωτή, αλλα επειδή παλιότερα σε άλλο μοντέλο τα ίδια έλεγε το manual, έλεγα τώρα μηπως κάτσει ξανα..

Κάτι για μη σωστη εσωτερική θερμοκρασία μιλάει..

Κανείς .. καμιά γνώμη.. (?)

[sivadWS2]

Ανέβασε θερμοκρασία η κεφαλή.... (μήπως τύπωσες με σχεδόν άδεια μελάνια??)

Κατά πολύ μεγάλο ποσοστό χρειάζεται αλλαγή κεφαλής.. ή μάλλον καλύτερα αλλαγή εκτυπωτή (σχεδόν το ίδιο κοστίζει;-) )

[...---...]

Μάλιστα.. πάει αυτός..

Thanks for all!
