Benchmarking ... Let's see how good we are ... ;)

ultraex2003 · 18 Σεπτεμβρίου 2018

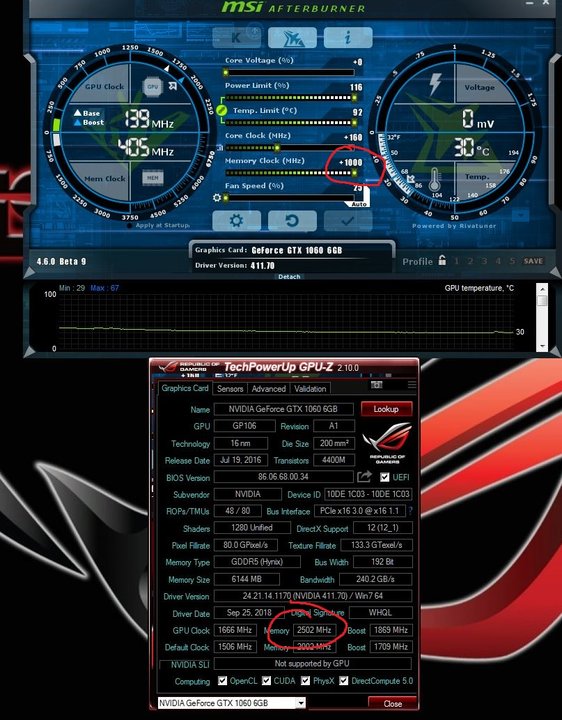

νεο update ........MSI Afterburner v4.6.0 beta 9 (build 13319)+RivaTuner Statistics Server v7.2.0 beta 5

http://msi-afterburner.guru3d.com/MSIAfterburnerSetup460Beta9build13319.rar

· Added NVIDIA Turing GPU architecture support:
o Added voltage control for reference design NVIDIA GeForce RTX 20x0 series graphics cards
o Advanced GPU Boost control for NVIDIA GeForce RTX 20x0 series graphics cards. Extended voltage/frequency curve editor on GeForce RTX 20x0 family graphics cards allows you to tune additional piecewise power/frequency floor and temperature/frequency floor curves. Control points on those new curves allow you to control GPU Boost power and thermal throttling algorithms more precisely than traditional power limit and thermal limit sliders
o Hardware abstraction layer has been revamped to provide support for multiple independent fans per GPU due to introducing dual fan design on reference design NVIDIA GeForce RTX 20x0 series graphics cards and due to introducing native dual fan control in NVAPI. Both fans of NVIDIA GeForce RTX 20x0 can be monitored independently in hardware monitoring module now and can be controlled synchronically in manual mode
o Added NVIDIA Scanner technology support
· Improved hardware monitoring module:
o Added thermal offset for CPU temperature monitoring on AMD Ryzen 7 2700X processors
o “Pagefile usage” graph in hardware monitoring module has been renamed to “Commit charge”
· Improved hardware control shared memory interface. During the past years, external applications like MSI Remote Server were using this interface for tuning GPU hardware settings remotely from external applications. The improvements are intended to allow connecting external stress testing and automatic overclocking related applications to MSI Afterburner via this interface:
o Now voltage/frequency curve on NVIDIA Pascal and newer NVIDIA GPU architectures is accessible via hardware control shared memory interface
o New hardware control shared memory interface command allows MSI Afterburner to load hardware settings from external application without immediately applying new settings to GPU
o Added notification message, allowing external applications to notify MSI Afterburner about new command written to hardware control shared memory. Without the notification, MSI Afterburner is executing external commands on each hardware polling iteration like before. Please refer to SDK and MACMSharedMemorySample source code to see notification message usage example
o Added hardware identification info to GPU entries in hardware control shared memory. Hardware identification info allows external applications to reconcile own enumerated devices with logical GPUs enumerated by MSI Afterburner
o Now hardware control shared memory is refreshed on delayed fan speed readback events
· New bundled MSI Overclocking Scanner application in now included in MSI Afterburner distributive:
o MSI Overclocking Scanner is currently supported on NVIDIA RTX 20x0 series graphics cards under 64-bit operating systems only. On such systems you may activate the scanner directly from voltage/frequency curve editor window
o MSI Overclocking Scanner is powered by NVIDIA Scanner technology, which is using proprietary algorithms to quickly and reliably test manually overclocked GPU stability or find the maximum stable GPU overclocking in automatic mode with a single click. The scanner is using embedded NVIDIA test load to stress GPU. The scanner provides you two functional modes:
§ In test mode MSI Overclocking Scanner is stress-testing your manual GPU overclocking settings during approximately 5 minutes. The result is returned as GPU stability confidence level (0% - unstable, 100% - stable)
§ In scan mode MSI Overclocking Scanner is stress-testing and slowly increasing clocks on voltage/frequency curve points and this way automatically detecting the maximum stable GPU overclocking. The result is returned as modified voltage/frequency curve and average GPU overclocking in MHz
· Hardcoded voltage/frequency curve clock multiplier implementation has been replaced with heuristic multiplier detection in order to provide unified voltage/frequency curve control implementation for NVIDIA Pascal and newer NVIDIA GPU architectures
· Improved realtime voltage/frequency curve editor GUI scaling. Now GUI is scaled property when adjusting skin scaling with open voltage/frequency curve editor window
· Added Monolithic Power Systems MP2888A voltage controllers support to provide compatibility with future custom design MSI graphics cards
· RivaTuner Statistics Server has been upgraded to v7.2.0

RivaTuner Statistics Server v7.2.0 beta 5

· Added On-Screen Display performance profiler. Power users may enable it to measure and visualize CPU and GPU performance overhead added by On-Screen Display rendering. Two performance profiling modes are available:
o Compact mode provides basic and the most important CPU prepare (On-Screen Display hypertext formatting, parsing and tessellation), CPU rendering and total CPU times, as well as GPU rendering time (currently supported for Direct3D9+ and OpenGL applications only)
o Full mode provides additional and more detailed per-stage CPU times
· Improved built-in framerate limiter:
o Fractional framerate limit adjustment functionality is no longer power user oriented, now you may specify fractional limit directly from GUI
o Now you may click “Framerate limit” caption to switch framerate limiter to alternate “Frametime limit” mode. New mode allows you to specify the limit directly as a target frametime with 1 microsecond precision
o Added alternate framerate limiting mode, based on synchronization with display rasterizer position. Now you may synchronize the framerate to up to two independent scanline indices per refresh interval. Combining with power user configurable scanline wait timeout and graphics pipeline flushing options, those settings provide experienced users vendor agnostic ultra low input lag adaptive VSync, half VSync or double VSync functionality on any hardware
o Added power user oriented idle framerate limiting mode. Unlike traditional framerate limiting mode, idle framerate limiting mode is only affecting inactive 3D applications running in background. Idle framerate limit is specified as a target frametime with 1 microsecond precision. Idle framerate limiting mode helps to reduce power consumption when you minimize some heavy 3D applications and switch to other processes
· Various On-Screen Display optimizations and improvements:
o Added adjustable minimum refresh period for On-Screen Display renderer. The period is set to 10 milliseconds by default, so now the On-Screen Display is not allowed to be refreshed more frequently than 100 times per second. Such implementation allows keeping smooth animation when On-Screen Display contents are being updated on each frame (e.g. when displaying realtime frametime graph) without wasting too much CPU time on it
o Added alternate GPU copy based Vector2D On-Screen Display rendering mode implementation for Direct3D1x applications. New mode provides up to 5x Vector2D performance improvement on NVIDIA graphics cards, however it is disabled on AMD hardware due to slow implementation of CopySubresourceRegion in AMD display drivers
o Vector2D rendering mode is now forcibly disabled in Vulkan applications on AMD graphics cards due to insanely slow implementation of vkCmdClearAttachments in AMD display drivers
o Revamped geometry batching and vertex buffer usage strategy in pure Direct3D12 On-Screen Display renderer (currently used in Halo Wars 2 only)
o Added Vector2D rendering mode support to pure Direct3D12 On-Screen Display renderer
o Optimized On-Screen Display hypertext parsing and tessellation implementation
o Optimized state changes in OpenGL On-Screen Display rendering implementation
o Optimized state changes in Direct3D1x On-Screen Display rendering implementation
o Solid rectangles and line primitives in Direct3D8 and Direct3D9 On-Screen Display rendering implementations are now rendered from vertex buffer instead of user memory
o Improved OpenGL framebuffer dimensions detection when framebuffer coordinate space is selected
o Increased static command buffer size for Vulkan and pure Direct3D12 renders to increase amount of primitives rendered in On-Screen Display in a single pass
· Improved desktop duplication based desktop video capture implementation ( Windows 8 and newer OS versions):
o Now desktop video recording sessions do not stop on display mode switch or on switch to exclusive fullscreen mode. Such approach allows you to start capturing video on desktop then launch some 3D application and create a video file containing both desktop and 3D application’s video streams
o Improved video capture API allows video capture frontend applications (e.g. MSI Afterburner) to force desktop or 3D application video capture modes in addition to default mixed desktop/3D application capture mode
o Now desktop capture is using multhithreaded active busy-wait loop frame capture instead of timer driven frame capture in order to improve frame timing precision and resulting video smoothness. The previous timer driven frame capture can be enabled via configuration file if necessary
o Decreased desktop duplication timeouts in order to improve RivaTuner Statistics Server GUI response time under certain conditions during desktop videocapture sessions in timer driven frame capture mode
· Fixed On-Screen Display rendering in wrong colors when Vector2D mode is selected and Direct3D1x applications use 10-bit framebuffer
· Fixed Vulkan fence synchronization issue, which could cause GPU-limited Vulkan applications to hang due to attempt to reuse busy command buffer
· Active busy-wait loop in the framerate limiter module is now forcibly interrupted during unloading the hooks library to minimize the risk of deadlocking 3D application when dynamically closing RivaTuner Statistics Server during 3D application runtime
· Improved CBT hooks uninstallation routine to minimize the risk of deadlocking 3D application when dynamically closing RivaTuner Statistics Server during 3D application runtime
· Improved validation in OpenGL On-Screen Display rendering routine to minimize the risk of crashing OpenGL applications
· Changed OpenGL cleanup routines to improve compatibility with OpenGL applications using multiple rendering contexts (e.g. GPU Caps Viewer)
· Improved synchronization in 32-bit API hook uninstallation routines
· Added timeout to API hooks injection in CBT hook handler. The timeout is aimed to reduce injection related CPU overhead on some systems, related to high mouse polling rate combined with keyboard/mouse hooks installed by third party applications
· Interoperability D3D10 page flips on some systems are now filtered by framerate calculation module in OpenGL/Vulkan applications
· Added tri-state skinned buttons support in the skin engine
· Updated profiles list
