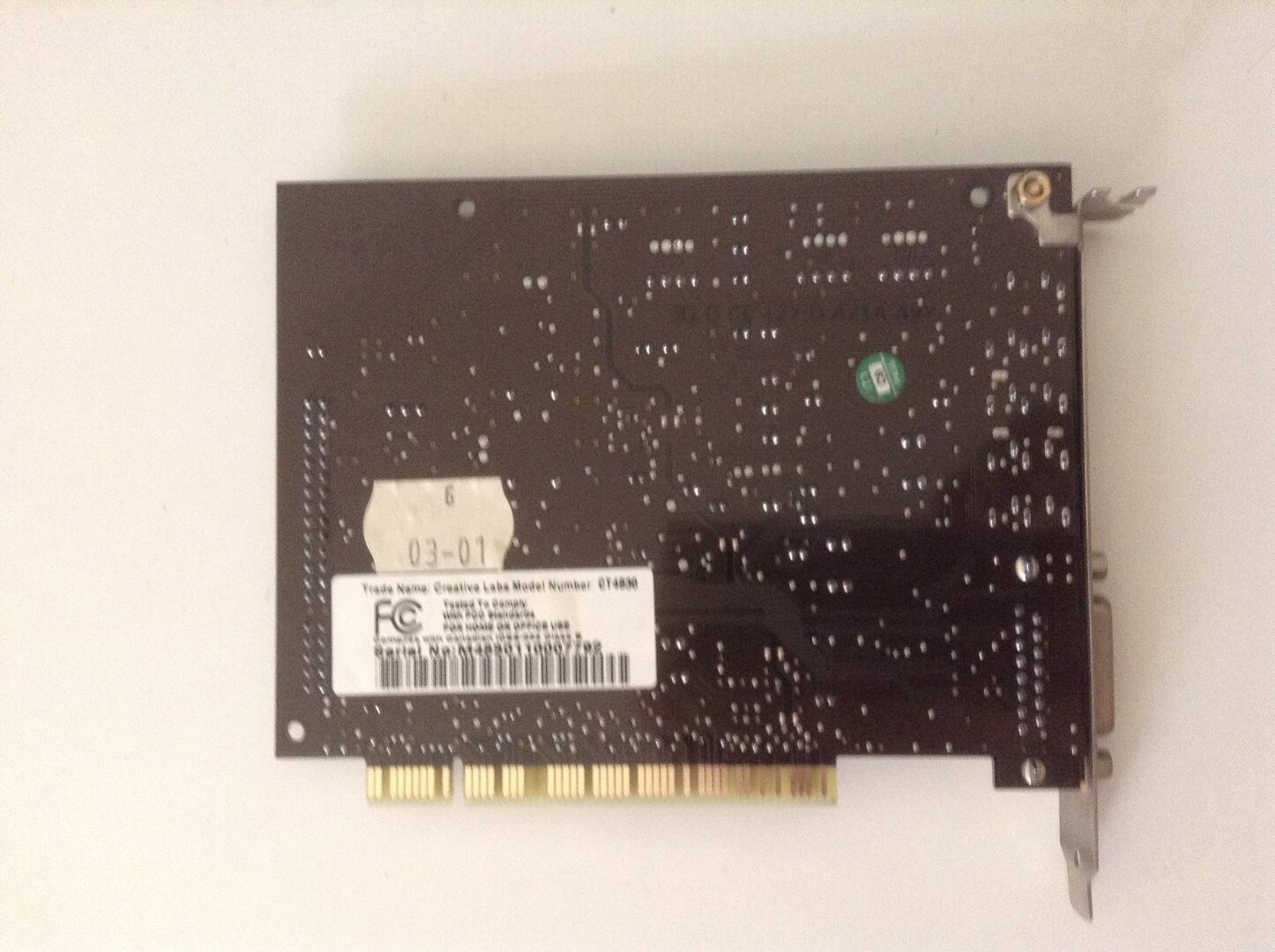

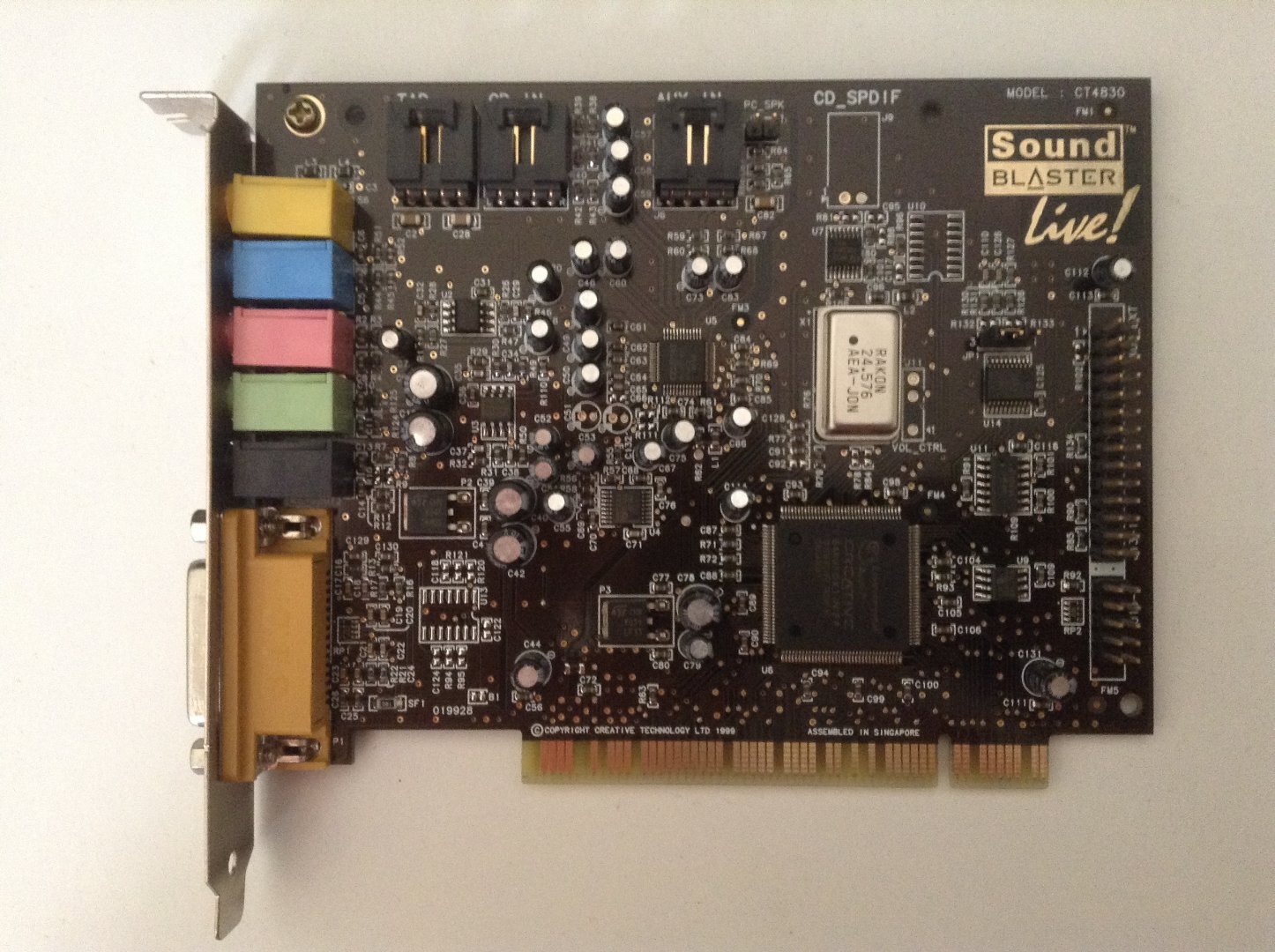

Πωλείται η εικονιζόμενη κάρτα ήχου Creative Sound Blaster Live! Value (CT4830) σε λειτουργική κατάσταση. Ήταν τοποθετημένη για κάποιο διάστημα σε ένα παλιό σύστημα και πλέον δεν μου χρειάζεται. Έχει καθαριστεί από σκόνη και φυλαχθεί, ενώ έχει ελεγχθεί για τη λειτουργία της.

Χαρακτηριστικά:

• Max Sampling Rate: 48 Hz
• Signal Processor: EMU-10K1

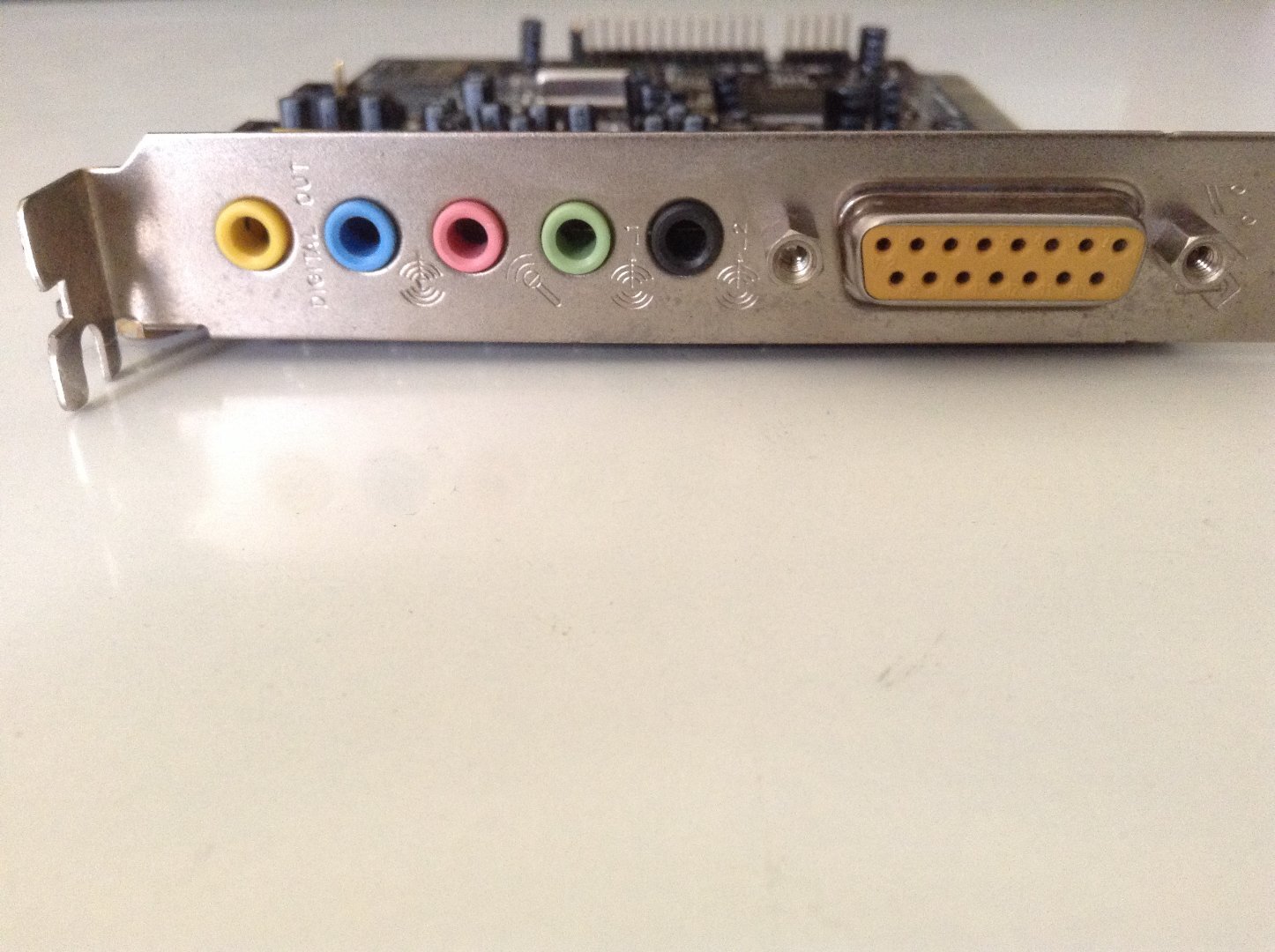

• Connector Type: 15 pin D-Sub (DB-15), mini-phone mono 3.5 mm, mini-phone stereo 3.5 mm
• Type: MIDI, audio line-in, audio line-out, microphone
• Sound Output Mode: stereo/FourPoint
• Sound Synthesis Method: E-mu Systems, wavetable
• DAC Resolution: 32-bit
• Sample Rate: 5 kHz (min) - 48 kHz (max)
• Voice Polyphony Qty: 64
• MIDI Channels Qty: 48
• Type: sound card
• Compliant Standards: AdLib, DirectSound, DirectSound3D, MPU-401, Sound Blaster, Sound Blaster 16/Pro
• Form Factor: internal
• Interface Type: PCI
• Signal Processor: EMU-10K1
• Min Sampling Rate: 5 Hz
• Max Sampling Rate: 48 Hz
• Type: sound card
• Form Factor: plug-in card

Λεπτομέρειες:

EMU10K1 music synthesis engine

• 64-voice polyphony, with 8-point interpolation
• 192-voice polyphony PCI wave-table synthesis
• 48 MIDI channels with 128 GM and GS-compatible instruments, and 10 drum kits
• Uses SoundFont technology for user-definable wave table sample sets
• Up to 32 MB of sound RAM mapped to host memory
• Effects Engine

EMU10K1 patented effects processor

• Supports real-time effects like reverb, chorus, echo, flanger, pitch shifting,
• frequency shifting vocal morpher, ring modulator, or distortion across any audio source
• Capable of mixing, processing, and positioning audio streams using up to 131 available hardware channels
• Full digital mixing
• Full bass, treble and effects controls available for all audio sources
• Environmental 3D Positional Audio Technology
• User-selectable speakers are optimized for headphones and 2 or 4 speakers

Accelerates Microsoft DirectSound and DirectSound 3D

• Support for Environmental Audio property set extensions
• Creative Multi-Speaker Surround technology places any mono or stereo sound source in a 360° audio place
• Creative Environments: user-selectable DSP modes that simulate acoustic environments like hall, theatre, club, etc. on any sound source
• 32-bit Digital Audio Engine
• 16-bit and 8-bit digitizing in stereo and mono modes
• User-selectable sample rates from 8 kHz to 48 kHz
• 32-bit digital processing
• Analog and digital I/O modes supported
• Hardware full duplex support
• Uses AC'97 audio code
• MIDI Interface/Joystick port
• Supports MPU-401 UART mode

IBM compatible 15-pin joystick port
